Quick Details

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: XINE
  • Model Number: WDZ-NBY, WDZ-RY, WDZ-NRY,WAZ-BYY
  • Type: Insulated
  • Application: construction, industrial, underground, power station
  • Conductor Material: Copper
  • Conductor Type: solid or stranded
  • Insulation Material: Halogen free Low smoke material
  • Color: as per order

Packaging & Delivery

Packaging Details 100METERS/ROLL, IN STANDARD EXPORT PALLETS OR WOVEN BAGS.
Delivery Time About 15 days for a 20FT container
Halogen free Low smoke wire

Detailed Product Description
Halogen-free Low-smoke Flame-retardant Polyolefin Compound Insulated Clean cable(Clean cable, electric wire)
Executive Standard:
It is manufactured according to IEC60332-1/60332-3/60754/61034

Application:
It is used for fixedly laying in engine devices of AC. Rated voltage 450/750V or lower.

Using Festures:
The product has a series of performances. Non-halogen, don't release harmful gas and corrosion gased; Low-smoking, Withour pollution- soils.
1.Max.Temperature of conductor:90oC
2.The insatlation temperature should not less than 0oC
3. The bending radius of cable should not less than 15mm(16D) 15MM-25MM(8D) and over 25mm(10D) (D means outer diameter of cable)

Delivery length:
Delivery length is decided by the seller and buyer with length error allowance of no more than ±0.5%
Type designation:
Type
Designation
Rating (V)
Core No.
Normal area of conductor(mm2)
WDZ-BY
General-purpose single core hard conductor clean cable without sheath
300/500V
1
0.51
450/750V
1
1.5400
WDZ-RY
General-purpose single core soft conductor clean cable without sheath
300/500V
1
0.51
450/750V
1
1.5240
WDZ-NBY
Inner wiring purpose,single core,solid conductor clean cable without sheath
300/500V
1
0.51
450/750V
1
1.5400
WDZ-NRY
Inner wiring purpose,single core,soft conductor clean cable without sheath
300/500V
1
0.51
450/750V
1
1.5240
WDZ-BYY
Light type PO sheath clean cable
300/500V
1,2,3,4,5
135
WDZ-BYYB
Cu conductor PO insulation and flat sheath clean cable300/500V
2,3
110
WDZ-BYR
Cu conductor PO insulation soft clean cable450/750V
1
2.570

(Clean cable, electric wire,Clean cable,insulation wire,without pollution wire, halogen-free wire, low-smoke wire, flame-retardant wire, polyolefin insulated wire)

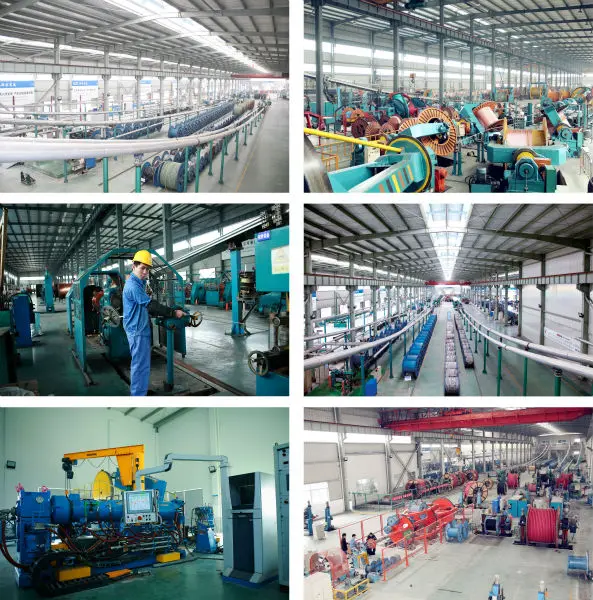

Our Factory:

Our Certificate:

Our Equipment:

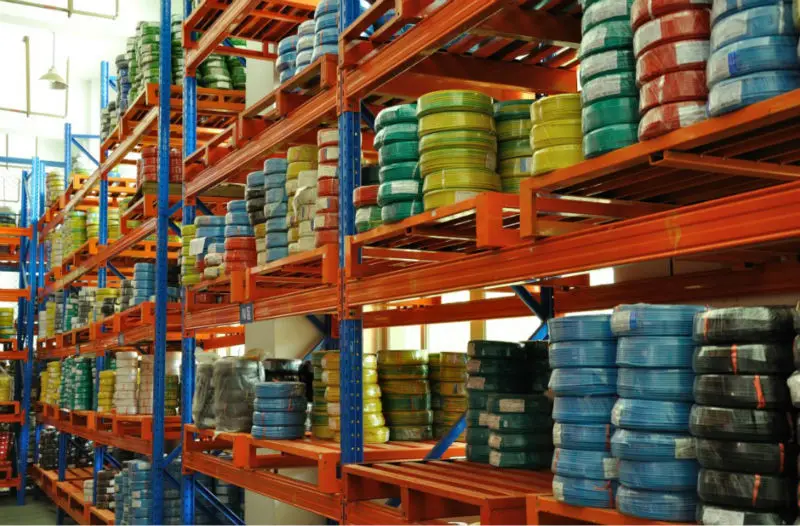

Ware House:
